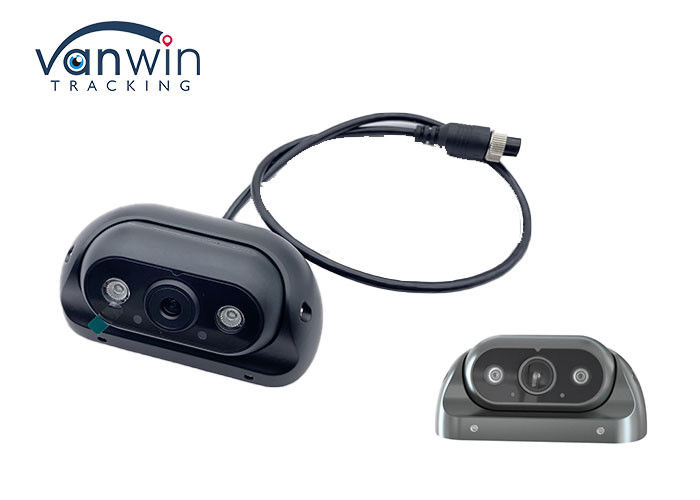

1080P HD Camera 3D Night Vision Bus Surveillance Camera DSM waterproof system wireless camera
Détails sur le produit:
| Lieu d'origine: | Shenzhen, en Chine |
| Nom de marque: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Numéro de modèle: | VW-132H |
Conditions de paiement et expédition:
| Quantité de commande min: | 5 pièces |
|---|---|
| Prix: | negotiated |
| Détails d'emballage: | Paquet de carton neutre par défaut. Paquet personnalisé est disponible si la commande atteint 300 pi |
| Délai de livraison: | 2-3 jours pour les échantillons, 15-30 jours pour les grandes commandes |
| Conditions de paiement: | T/T ou union occidentale ou Paypal |
| Capacité d'approvisionnement: | 50, 000 pièces par mois; |
|
Détail Infomation |
|||
| taper: | Caméra arrière, caméra de secours, caméra imperméable | Capteur d'image: | SONY IMX307 |
|---|---|---|---|
| Angle de vue: | H = 150°, V = 90° | Étanche: | IP68 |
| Sortie vidéo: | 1920 (h) * 1080 (v) | Fonctionnalité: | Affichage vidéo du point mort |
| Application: | Automobiles, VUS, camions, véhicules agricoles, véhicules d'ingénierie, voitures touristiques, campi | Alimentation: | DC12V ± 10% |
Description de produit
1080P HD Camera 3D Night Vision Bus Surveillance Camera DSM waterproof system wireless camera
Camera Specificaiton:
| Item | Dual Lens Camera |
| Chip Sensor | PAL/NTSC |
| Image sensor | 1/2.8 " |
| Pixel Size | 2.9um x 2.9um |
| Pixel | 1945*1109 |
| Min.Lux | 0.0001Lux(@F1.2,AGC ON) |
| TV system | NTSC standard/Pal Optional |
| Lens | 150°(H) for front view /90°(H) for rear view |
| Waterproof | IP68 |
| ADC resolution | 10 bit ADC |
| Max Frame rate | 1080P@25fps / 1080P@30fps |
| Video output | 1920(h)*1080(v) |
| Current output | DC:12V ±10% |
| Operating temperature | -30~70℃ |
| Stable Image temperature | -40~80℃ |
| Input frequency | 74.25/37.125MHz |
| Size | 109*74*46cm |
Night Vision Car Camera User Precautions
Installation:
- Ensure proper installation according to the manufacturer’s guidelines to avoid damage and ensure optimal performance.
- Mount the camera securely to prevent it from falling or shifting during driving.
Power Supply:
- Use only the recommended power supply to avoid electrical issues.
- Regularly check the power connections to ensure they are secure and free from corrosion.
Product Pictures
![]()
![]()
![]()
Vous voulez en savoir plus sur ce produit
