10.1 Inch Touch DVR Monitor with 360 AI BSD and LED Alarm Reduces Accidents for Forklifts Trucks Agricultural Vehicles
Détails sur le produit:
| Lieu d'origine: | Shenzhen, Chine |
| Nom de marque: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Numéro de modèle: | VW-1014BSD-T |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièce |
|---|---|
| Prix: | $300~$400 per piece |
| Détails d'emballage: | Emballage en carton neutre par défaut. Un package personnalisé est disponible si la commande atteint |
| Délai de livraison: | 2-3 jours pour les échantillons, 15-30 jours pour les ordres importants |
| Conditions de paiement: | Western Union, LC |
| Capacité d'approvisionnement: | 500, 000 pièces par mois; |
|
Détail Infomation |
Description de produit
Products Specifications:
| project | Function introduction | Performance |
| system | Operating language | Chinese,English,Japanese, Korean, Spanish, Arabic, Italian, Turkish, etc |
| Operating interface | Graphic menu operation | |
| Operation method | Touch operate | |
| Video input | Video input | 4 CH AHD HD 1080P/720P |
| Video format | 1CH/4CH videos Switching, are stored separately, Front (front), back (back), left (left), right (right), park (parking monitoring) | |
| Video display | real-time display | 7inch/9inch/10.1 HD IPS screen options, |
| Resolution | 1024*600; | |
| Video display | Play locally, check at any time,or take out TF card to play on computer | |
| screen protector | Can be set for 1 minute/5 minutes/off | |
| Trigger display | Trigger display | Automatically switch to the large -screen perspective of the corresponding camera |
| Video storage | TF card | Class10 U1, minimum 64GB, maximum support 256GB |
| Power part | power input | The working voltage is 24V, which has power supply circuits such as rushing, overload, over voltage, over voltage, and short circuit, which is suitable for the power environment of various vehicles |
| Overall power consumption | Engine detection | ACC detection line |
| 4 CH video | Smaller than 10W (screen display, 4CH camera video) | |
| other | Operating temperature | -25 ~ 70 degrees |
| Reverse wire | CH1,CH2,CH3,CH4 | |
| Screen mirror/flip | 4Channels supports mirror/ flip display set | |
| License plate | support | |
| time setting | support | |
| Stop monitoring | Can be set off/1/2/5/10 hours | |
| Model | Backup Camera(optional) | |
| Material | Metal | |
| Chip sensor | 1/2.9” | |
| Resolution | 1920*1080 | |
| View angle | 90° - 180° | |
| IR light | Different models with different IR pcs option | |
| TV system | PAL/NTSC option | |
| Waterproof | IP67 | |
| Connector | 4pin aviation connector | |
| Function | Support to customized mirror/non-mirror/Guideline/AHD720/1080pswitch | |
| Warranty | 12 months | |
| Power supply | DC12V-24V | |
FAQ
Q1: Does the AI system only detect humans, or does it also detect vehicles and other obstacles?
A: Our advanced AI deep learning algorithm is specifically optimized to detect both pedestrians (standing, walking, or crouching) and vehicles (such as forklifts, trucks, and cars) in real-time. This minimizes false alarms from static non-hazard objects like walls or pillars.
Q2: What is the effective AI BSD detection range?
A: The standard reliable detection range is up to 5 meters for pedestrians. The detection zones can be customized and calibrated through the 10.1" touch screen interface to fit your specific machinery dimensions.

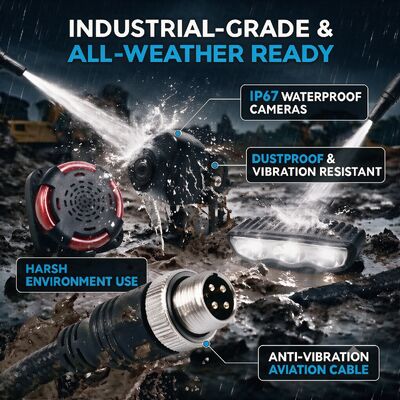

Q3: Can this system handle severe vehicle vibrations and harsh weather?
A: Absolutely. The system is built for heavy industries. The cameras feature an IP67 waterproof rating and rugged metal housing. Additionally, we use heavy-duty, screw-locked M12 4-pin aviation cables that prevent loose connections or signal drops, even under extreme vibrations from bulldozers or excavators.
Q4: Does it support continuous loop recording (DVR function)?
A: Yes, the monitor has a built-in DVR function supporting up to 256GB Class 10 Micro TF cards. It continuously records all 4 channels (Front, Rear, Left, Right) in AHD 1080P. This provides crucial video evidence in case of any accidents or liability disputes.
Q5: Can we customize the system (Logo, UI, Cables)?
A: Yes, as a professional manufacturer, we support extensive OEM/ODM services. We can customize your company's boot logo, modify the user interface (UI), and offer different aviation cable lengths (5M, 10M, 15M, or 20M options) depending on your fleet size.
Q6: What is the power supply compatibility?
A: The system supports a wide voltage input of DC 12V - 36V for the monitor and DC 12V - 24V for cameras and lights. This wide range makes it universally compatible with forklifts, trucks, tractors, harvesters, excavators, and other industrial machinery.

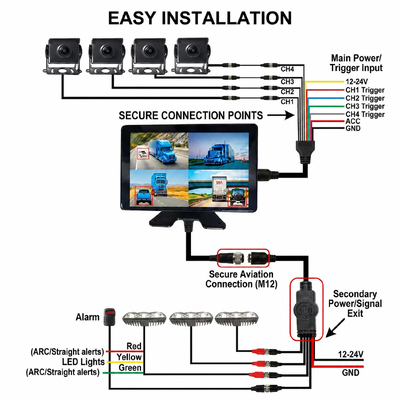

Q7: Is the installation complicated? Do you provide a wiring guide?
A: No, the system uses an error-proof, color-coded wiring harness and plug-and-play M12 aviation connectors. Every kit comes with an easy-to-follow user manual and wiring diagram. Most fleet technicians can complete the setup within 1 to 2 hours.
